Join tables into a VIEW

Overview

Understanding how to join tables is crucial for effectively managing a relational database where data resides across multiple tables. A view in a database serves as a virtual table, formed by a query that selects data from multiple sources. This virtual table can be saved for future reference, making views invaluable for data analysis and reporting by providing access to combined data without the need for data duplication.

Set up tables for joining

Before getting started, ensure that the tables we plan on joining are all created.

Follow instructions in Create a TABLE to create some tables and insert data into them.

Note

We need a minimum of two tables to join tables in MySQL. Ensure that these two tables have one column that shares identical data.

Combine multiple tables

After preparing multiple tables for joining, you need to decide how to join them. We will cover two of the most common types of SQL joins, INNER JOIN and LEFT JOIN. INNER JOIN retrieves only rows with matching values in both tables, emphasizing their commonalities. LEFT JOIN includes all rows from the left table, filling in non-matching right table rows with NULL values.

INNER JOIN

Execute the command below to perform inner join on two tables:
```
SELECT <TableName1>.<ColumnName>, <TableName2>.<ColumnName>, ...
FROM <TableName1>
INNER JOIN <TableName2>
ON <TableName1>.<CommonColumnName> = <TableName2>.<CommonColumnName>, ...;
```
The INNER JOIN keyword combines rows from two or more tables based on a related column between them.

The ON clause defines the condition to match columns between joined tables, determining the rows to combine.

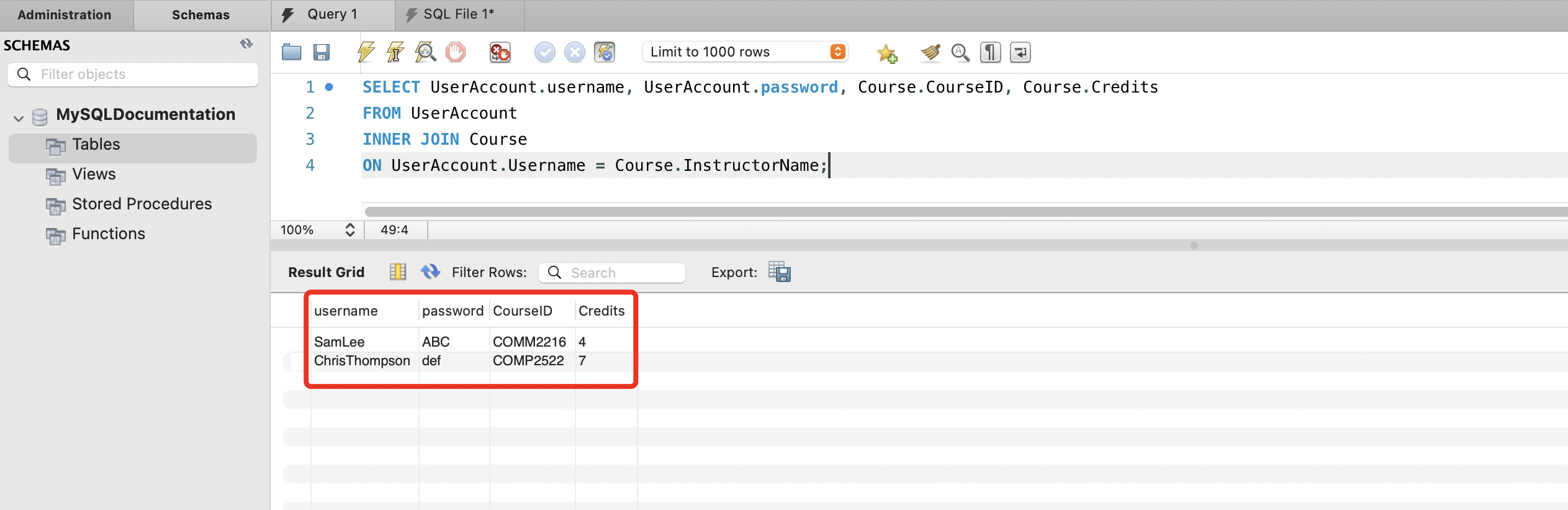

At this point, you should see the combined table in the output box:

Success
Verify that the combined table was merged correctly by cross checking the result.

The row count in the combined table should only contain rows where there is a match in both tables. Additionally, confirm that all desired columns are present in the combined table.

LEFT JOIN

Execute the command below to perform inner join on two tables:
```
SELECT <TableName1>.<ColumnName>, <TableName2>.<ColumnName>, ...
FROM <TableName1>
LEFT JOIN <TableName2>
ON <TableName1>.<CommonColumnName> = <TableName2>.<CommonColumnName>, ...;
```
The LEFT JOIN keyword merges all left table records with matching records in right table, filling non-matches with NULL.

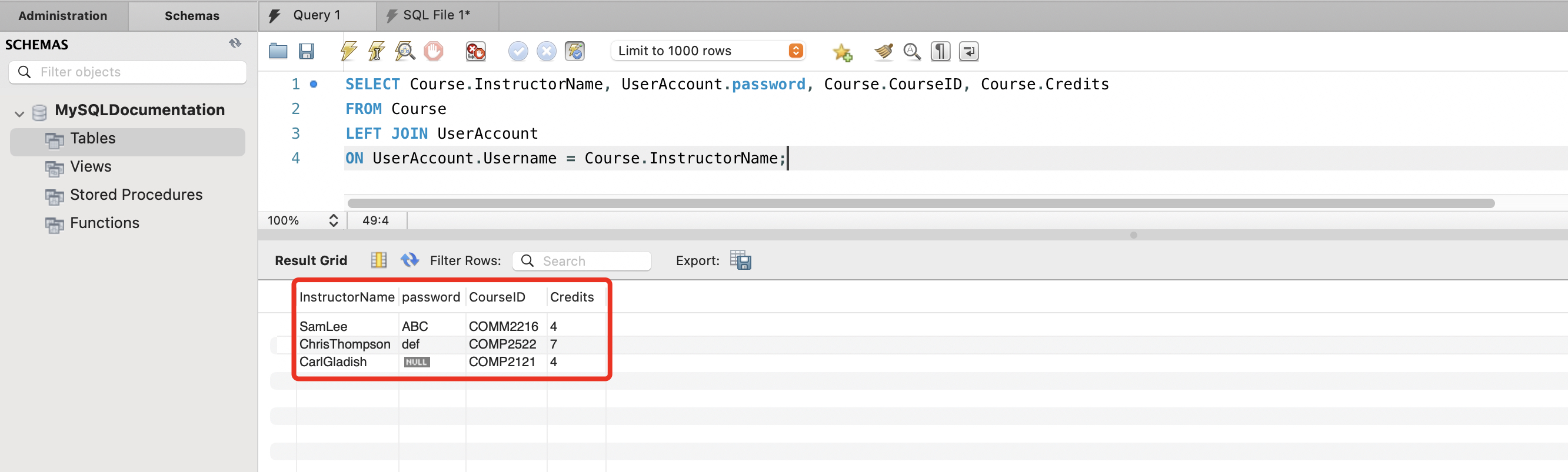

At this point, you should see the combined table in the output box:

Success
Verify that the combined table was merged correctly by cross checking the result.

The row count in the combined table should match the total rows in table <TableName1>. Additionally, confirm that all desired columns are present in the combined table.

Create a view

After you combined data from multiple tables, you will need to create a view for the combined data for future reference.

Execute the command below to create a view:
```
CREATE VIEW <ViewName>
AS <Query>;
```
In the command provided, replace <Query> with the join query you wrote in the previous step (either the INNER JOIN or the LEFT JOIN).

The CREATE VIEW statement allows you to store the result of a complex query as a virtual table.

The AS clause defines the query that populates the view.
Verify that the correct table was made by running the following command:
```
SELECT * FROM <ViewName>;
```

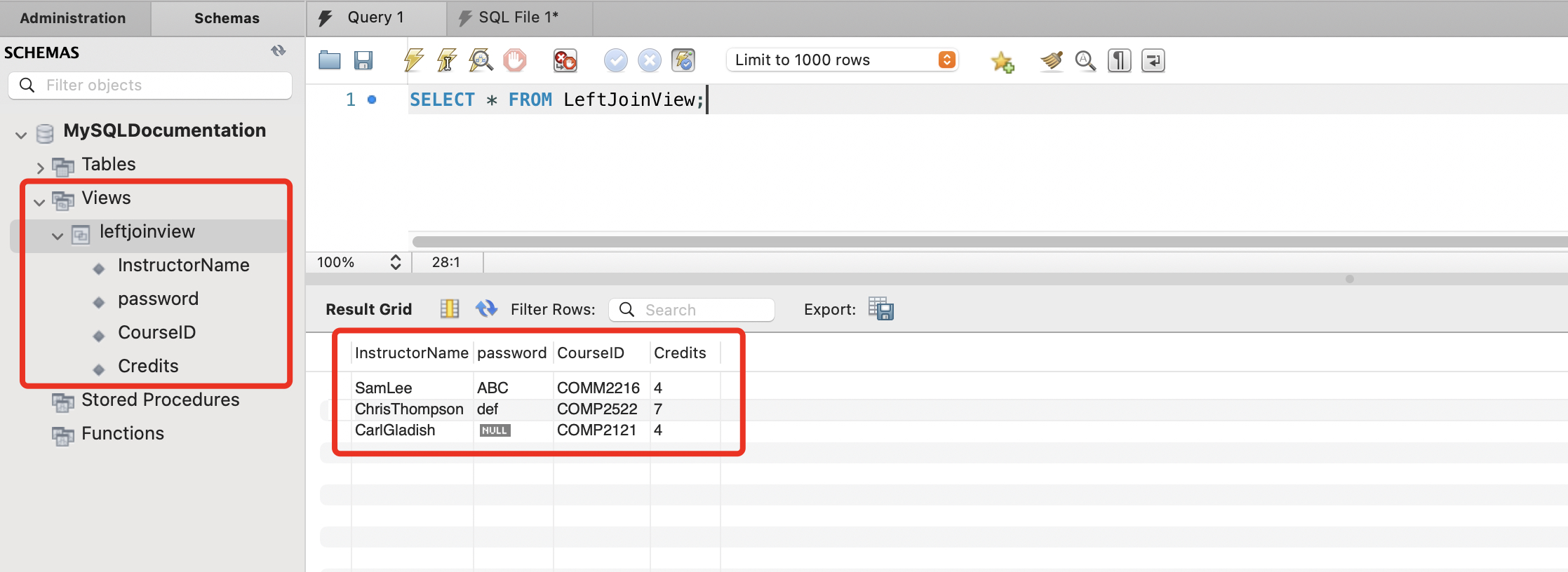

Click the refresh button to see your view appear on the schema pane and make sure the query results match those from the join query in the Combine multiple tables section:

Success
Follow instructions in Update a table record to update a record in one of the original tables.

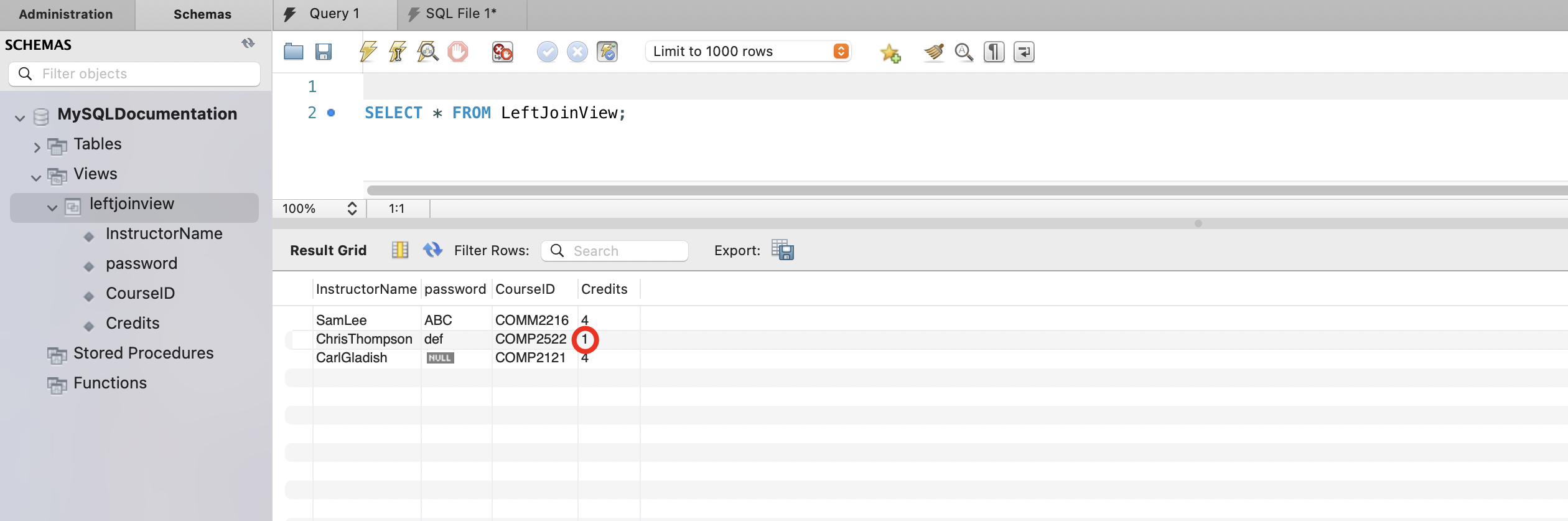

Refer to step 2 in this section to verify that the view's content has indeed been updated to mirror the changes made to the original table. Observe how the view automatically updates to reflect these changes, showcasing its dynamic connection to the source data:

Success

Drop a view

Finally, We will go over how to drop the view.

Execute the following command to drop the view in database:
```
DROP VIEW <ViewName>;
```
The DROP VIEW statement is used to remove an existing view from the database without impacting its source tables.

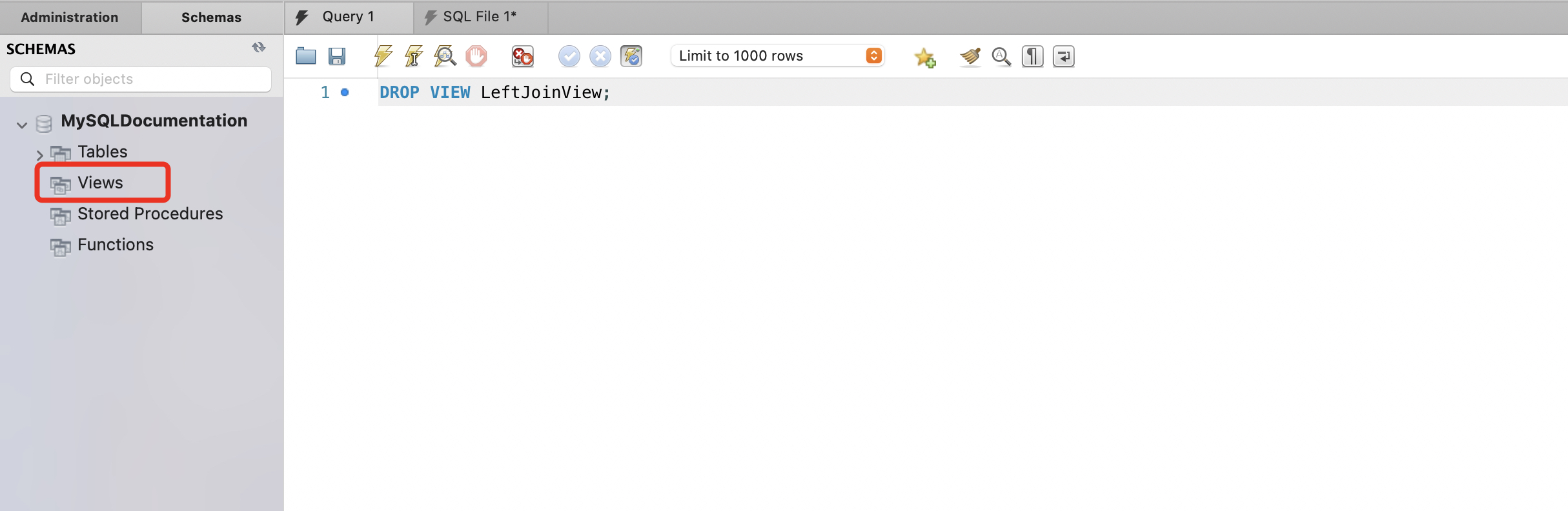

You should see the view disappear from the schema pane when it is successfully dropped:

Success

Conclusion

By the end of this section, you have gained knowledge on the following tasks:

Understanding the purpose and utility of joining tables
Creating a view from joined tables
Combining two tables with INNER JOIN
Comining two tables with LEFT JOIN
Dropping a view
